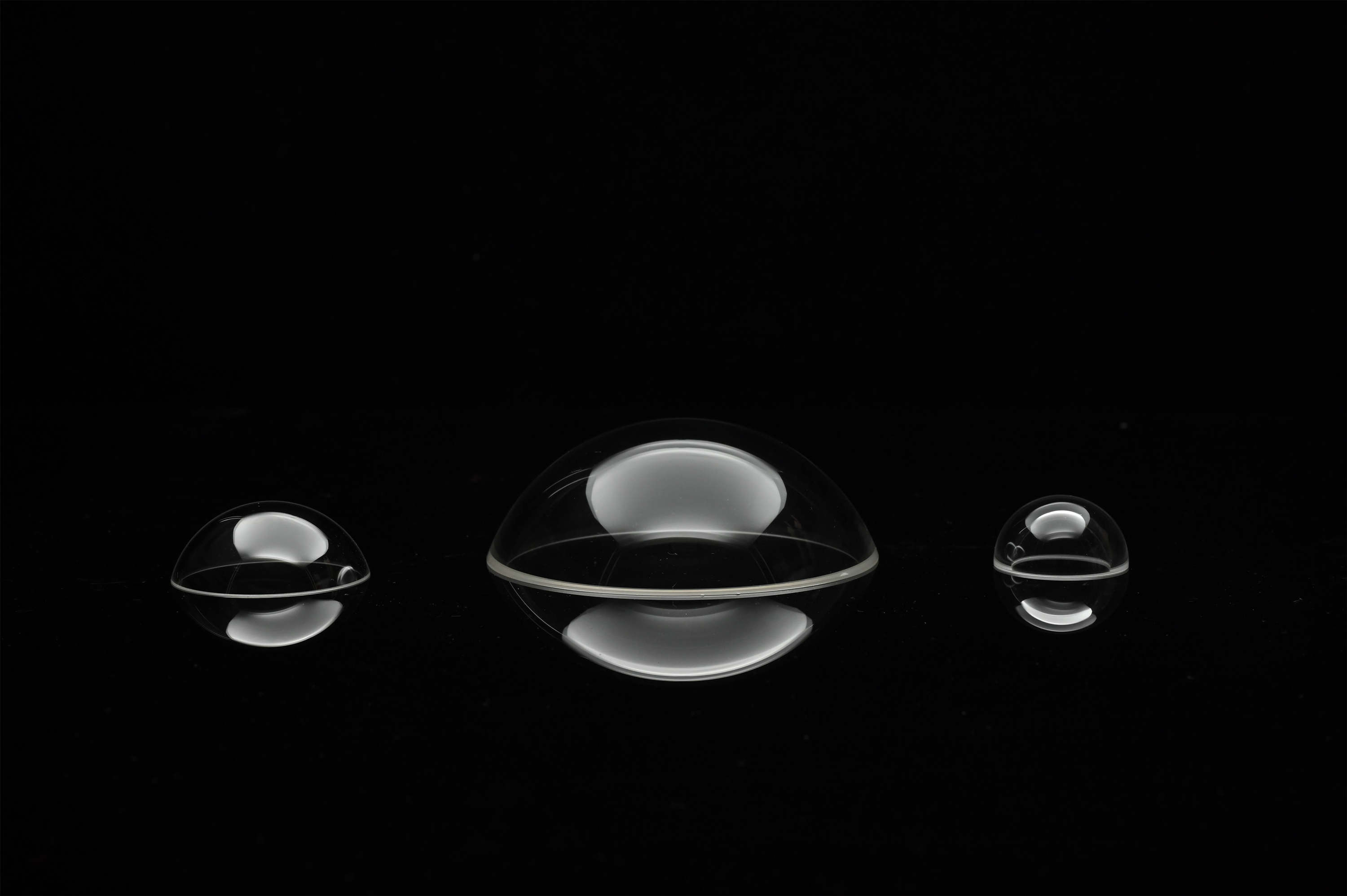

Spherical Lens (Micro and Medium Spherical Lenses)

Home

Optical Lenses

Spherical Lens (Micro and Medium Spherical Lenses)

Spherical Lens Parameters (Micro and Medium Spherical Lenses) Overview
/

Spherical Lens Parameters (Micro and Medium Spherical Lenses) Overview

Materials

Colorless optical glass, laser crystals, fused silica, radiation-resistant glass, UV and IR materials, metal materials, such as: SiO₂, CaF₂, BaF₂, ZnSe, ZnS, Ge, Si, Al₂O₃, etc.

Radius Range (mm)

R3~R∞

Shape Range (mm)

Φ3 ~Φ130

Shape Tolerance (mm)

±0.005 ~±0.05

Thickness Tolerance (mm)

±0.01 ~±0.1

Surface Quality

10/5~80/50

Surface Accuracy

λ/20~λ/4mm

Eccentricity

10″~5′(or Δt ≤0.01)

Coating

Customized according to requirements (refer to Boxin Coating Process Types and Layer Introduction)

Boxin processes a variety of precision lenses for cameras, projectors, telescopes, measuring instruments, optical equipment, and various optical imaging system applications. Whether you need us to manufacture lenses based on your drawings or fully custom-designed products, our professional optical design and manufacturing engineers can assist you in finding the right solution. Contact us immediately to consult with experts and get a quick quote.

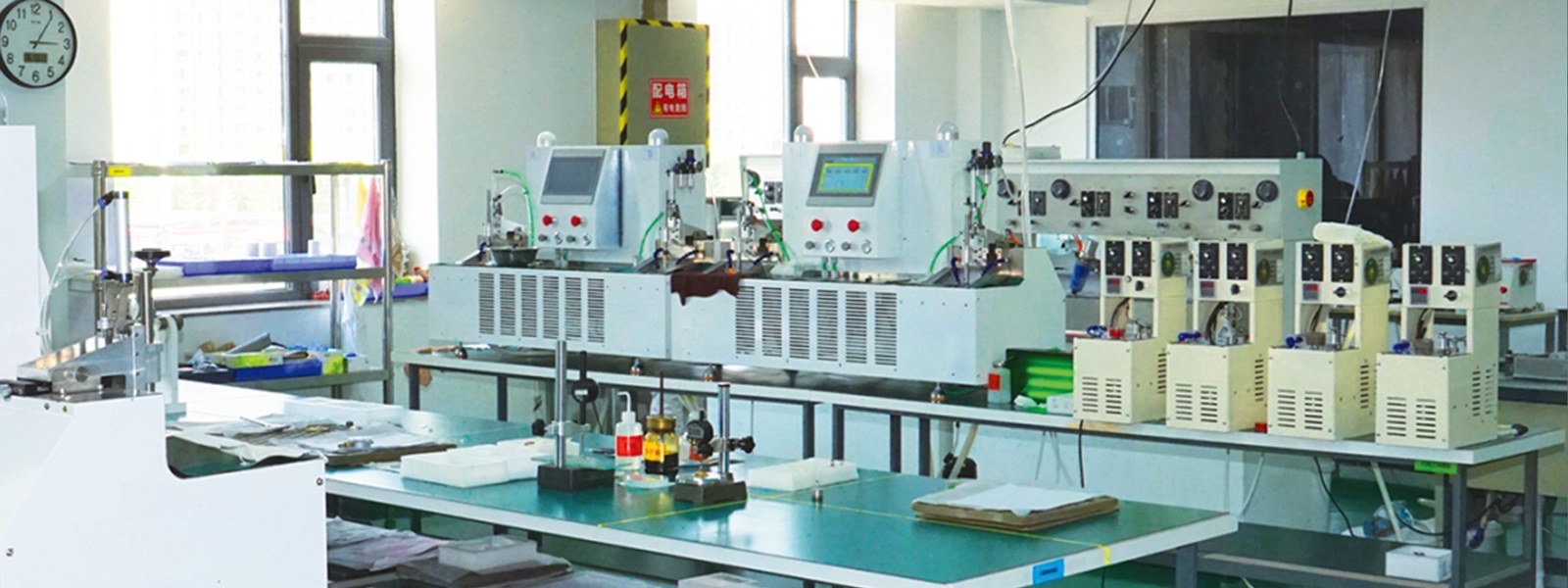

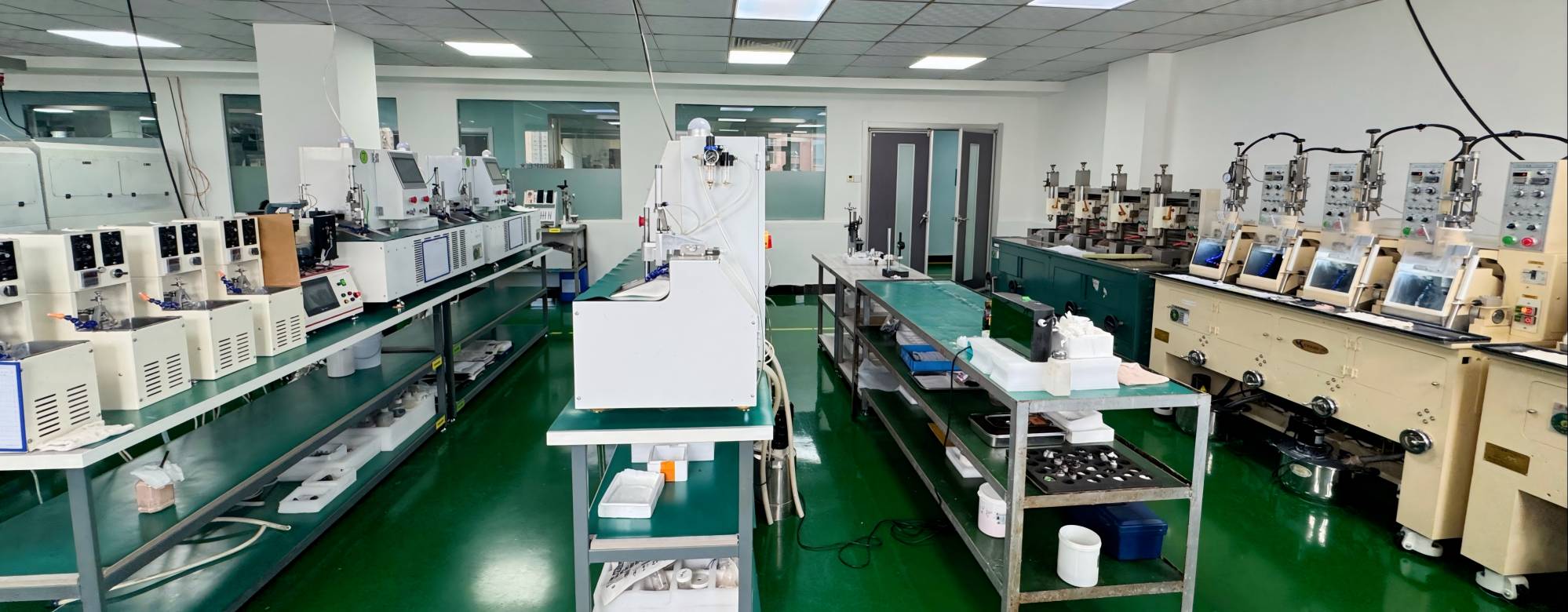

Boxin can produce lenses from various materials, with an annual output of 700,000 pieces. Boxin can process lenses with diameters ranging from 3mm to 1100mm. Whether you need a small number of spherical lenses for prototyping or mass production for a spherical lens project, Boxin is honored to assist you in completing your project.
